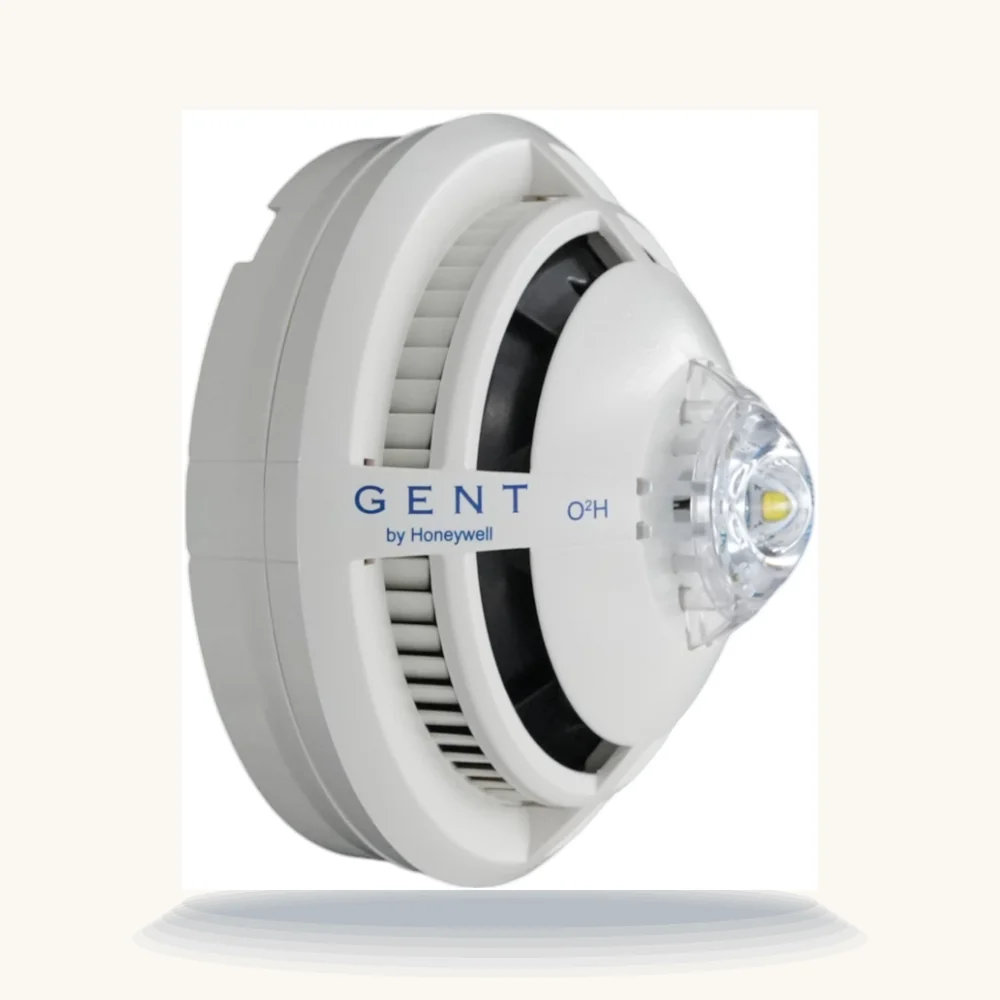

Lens colour is a design decision on this platform, not a finish. The S4-711-V-VAD-HPW, marked O2H/V/WVAD/HP, uses a white multi-die LED and on High is certified C-6-16 covering 1206.3 cubic metres, where the red part at identical current manages C-3-14 and 461.8 cubic metres.
Worth reading twice: the white lens doubles permitted mounting height from 3 m to 6 m and, all for the same 16 mA. Over a tall open volume that usually cuts the device count, with no change to loop load per unit.
Technical data
| Label marking | O2H/V/WVAD/HP |
| Sensing | Dual-angle optical, forward and backward scatter, plus heat |
| Light source | White multi-die LED |
| Analogue channels reported | 1, 2, 4, 5 |
| Strobe current, VAD alone | 16 mA High, 11.5 mA Medium, 6 mA Low |
| Total loop current, turbo | 20.5 mA High, 16 mA Medium, 10.5 mA Low |
| EN 54-23 coverage, High | C-6-16 at 1206.3 m3, no Category O |
| EN 54-23 coverage, Medium | C-3-14 at 461.8 m3, plus Category O-5-14 (5 m height, 14 m diameter) at 769.6 m3 |
| EN 54-23 coverage, Low | C-3-10.8 at 274.8 m3, plus Category O-4-10.8 (4 m height, 10.8 m diameter) at 366.4 m3 |
| Element standards | EN 54-7:2000 optical, EN 54-5:2000 heat, EN 54-3:2001 sounder, EN 54-23:2010 visual alarm |
Specifications from 4188-1073 issue 3.
Compatibility
Same mounting requirement as any S-Quad visual alarm: an IP21 plate under the base, available as the combined S4-701 or as S4-705 plates over existing S4-700 bases. The C-6-16 figure above is only reachable on the High setting, which an Enhanced Loop Card at the Vigilon Plus panel makes available; a Nano loop cannot offer it. If the specification calls for red, the equivalent is S4-711-V-VAD-HPR.
Installation
Mount and wire as the rest of the range, but confirm mounting height first. Anything sited above 3 m depends on the High setting for its certified coverage, making the intensity written into the panel part of the compliance case.
Full details: S-Quad data and installation instructions — 4188-1073 issue 3 · 28 pages · the white VAD table, coverage code notation and the light-level derating factors
